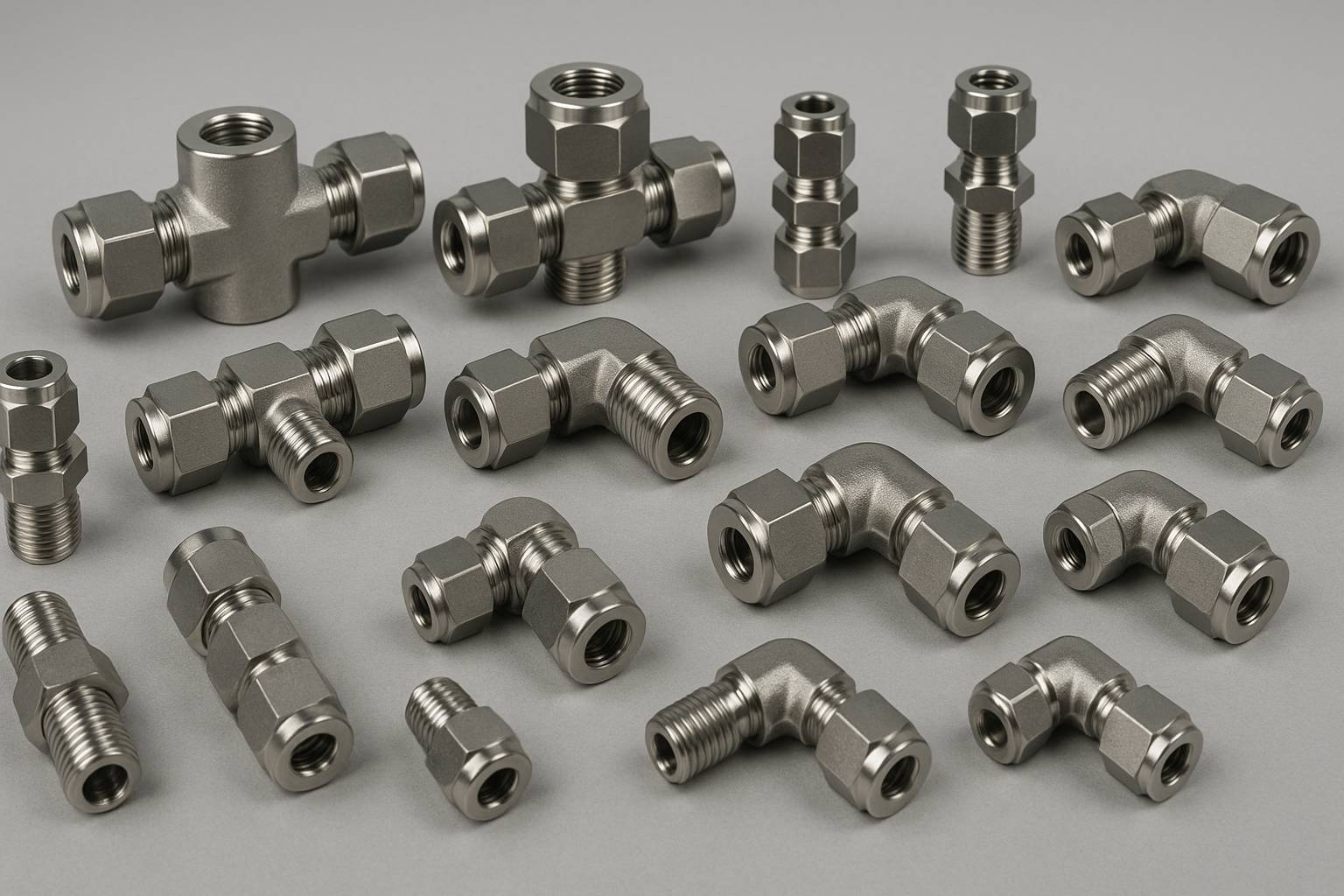

Instrumentation Fittings are precision-engineered components designed for leak-proof, high-integrity connections in fluid and gas systems. Used widely in critical applications across industries like oil & gas, petrochemical, power generation, and pharmaceuticals, these fittings ensure reliable and safe operation under varying temperature and pressure conditions.

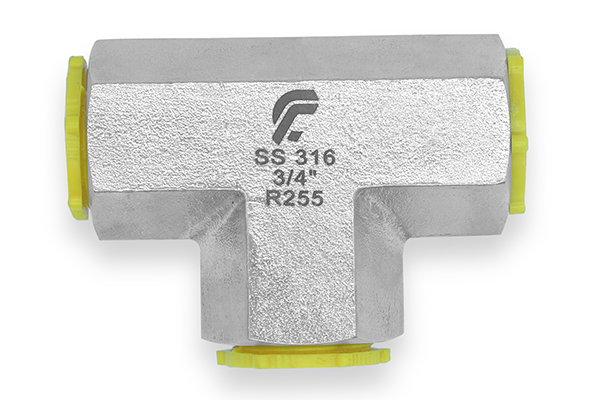

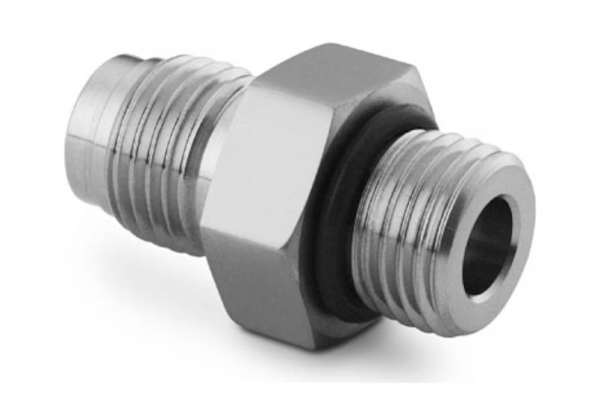

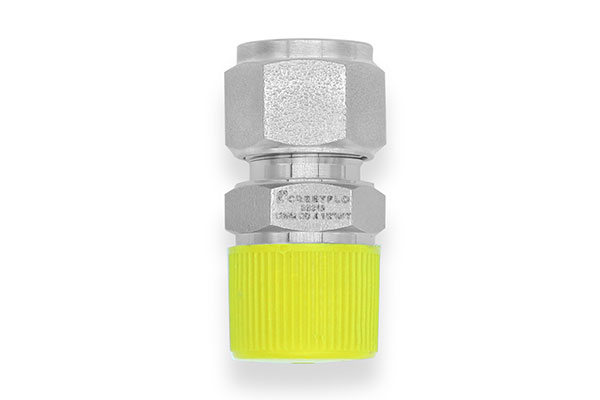

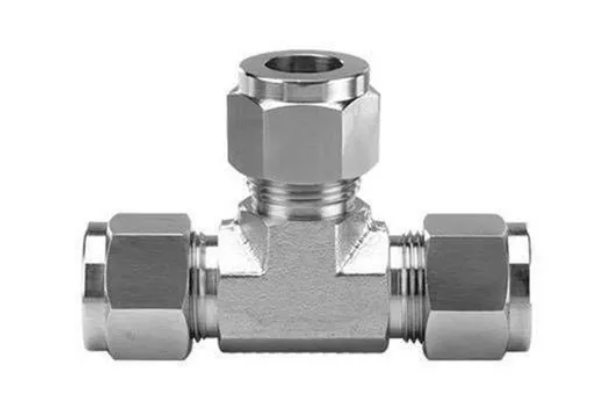

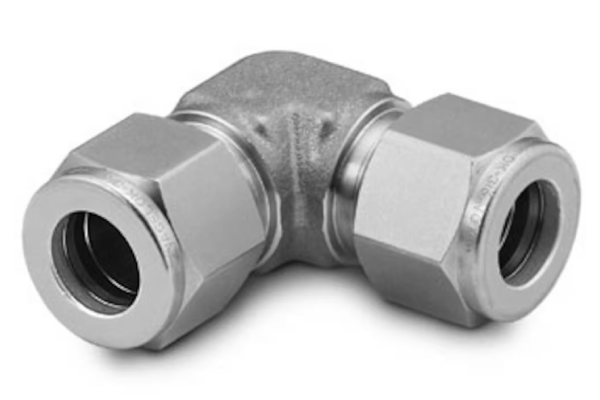

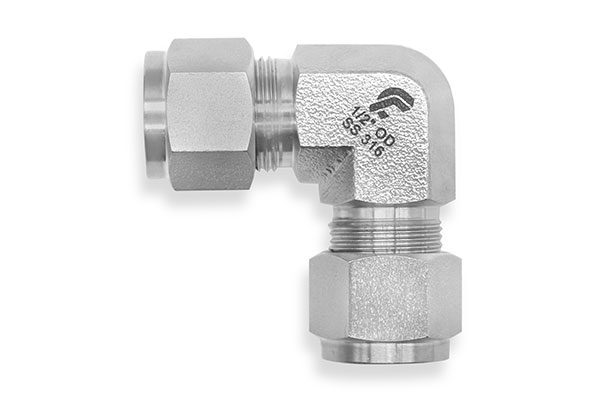

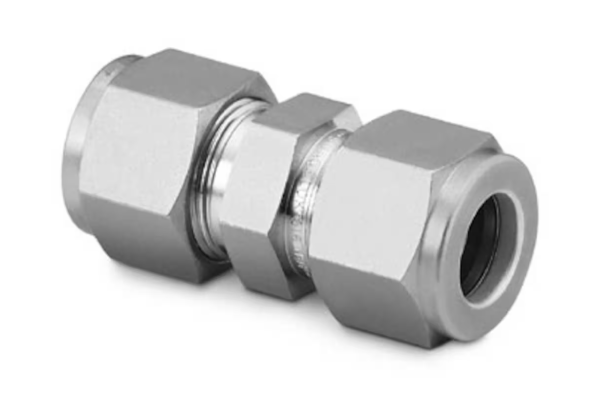

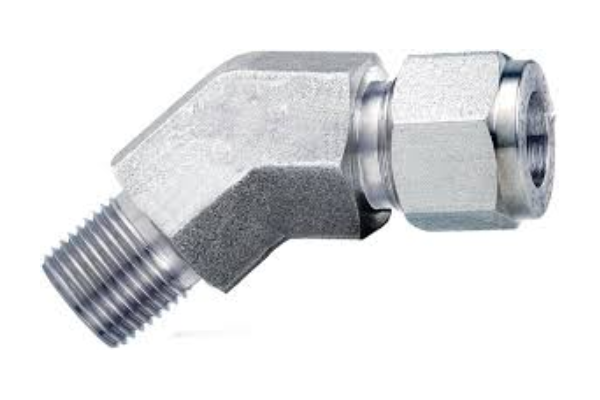

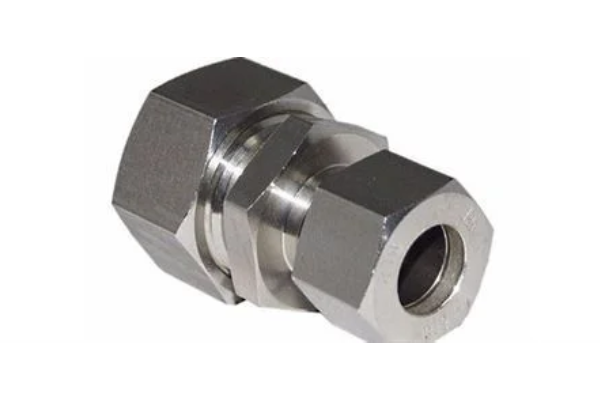

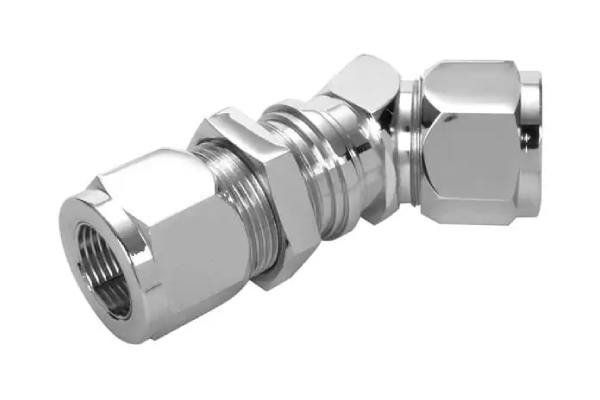

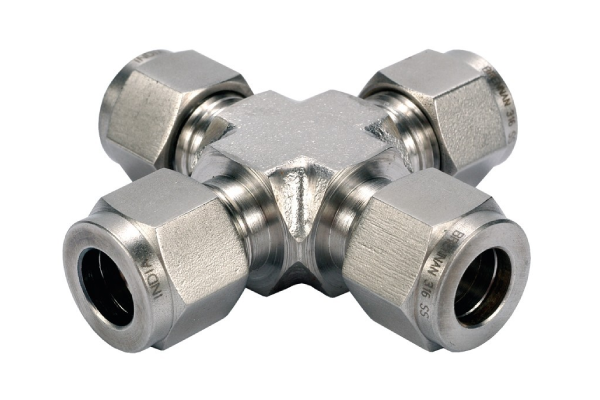

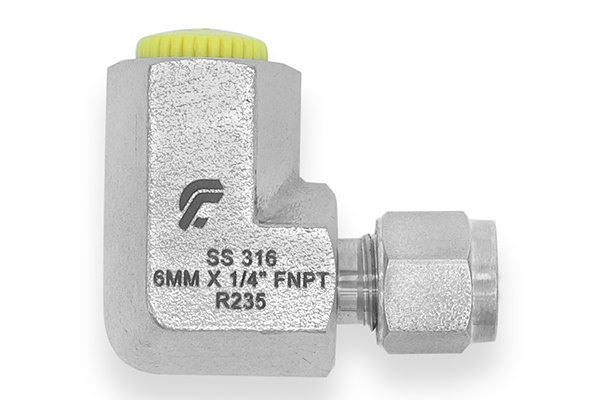

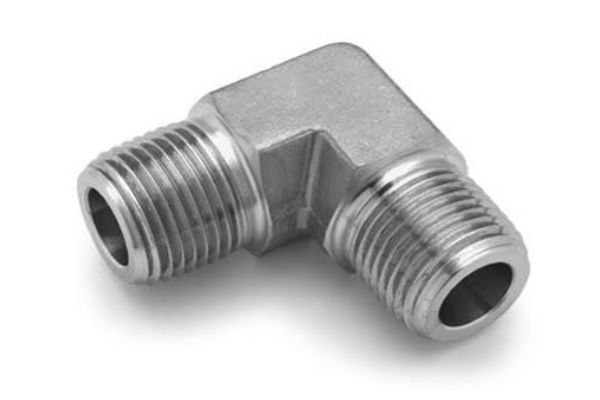

Manufactured using stainless steel and other corrosion-resistant alloys, instrumentation fittings are available in various types such as tube fittings, pipe fittings, adapters, elbows, tees, and unions to match application requirements and international standards.
Instrumentation Fittings
| Tube OD (Inch) | Thread Size (NPT) | Hex Size (mm) | Length (L1) (mm) | Pressure Rating (psi) |
|---|---|---|---|---|
| 1/8" | 1/8" NPT | 11 | 28 | 6000 |
| 1/4" | 1/4" NPT | 14 | 37 | 6000 |
| 3/8" | 3/8" NPT | 19 | 42 | 5000 |
| 1/2" | 1/2" NPT | 22 | 48 | 4700 |
| 3/4" | 3/4" NPT | 27 | 55 | 4500 |
| 1" | 1" NPT | 36 | 68 | 4000 |
OUR KEY
Withstands aggressive environments and chemicals.
Quick assembly without the need for special tools.
Suitable for systems operating up to 6000 psi.
Matches with a wide range of tubes and piping systems globally.
