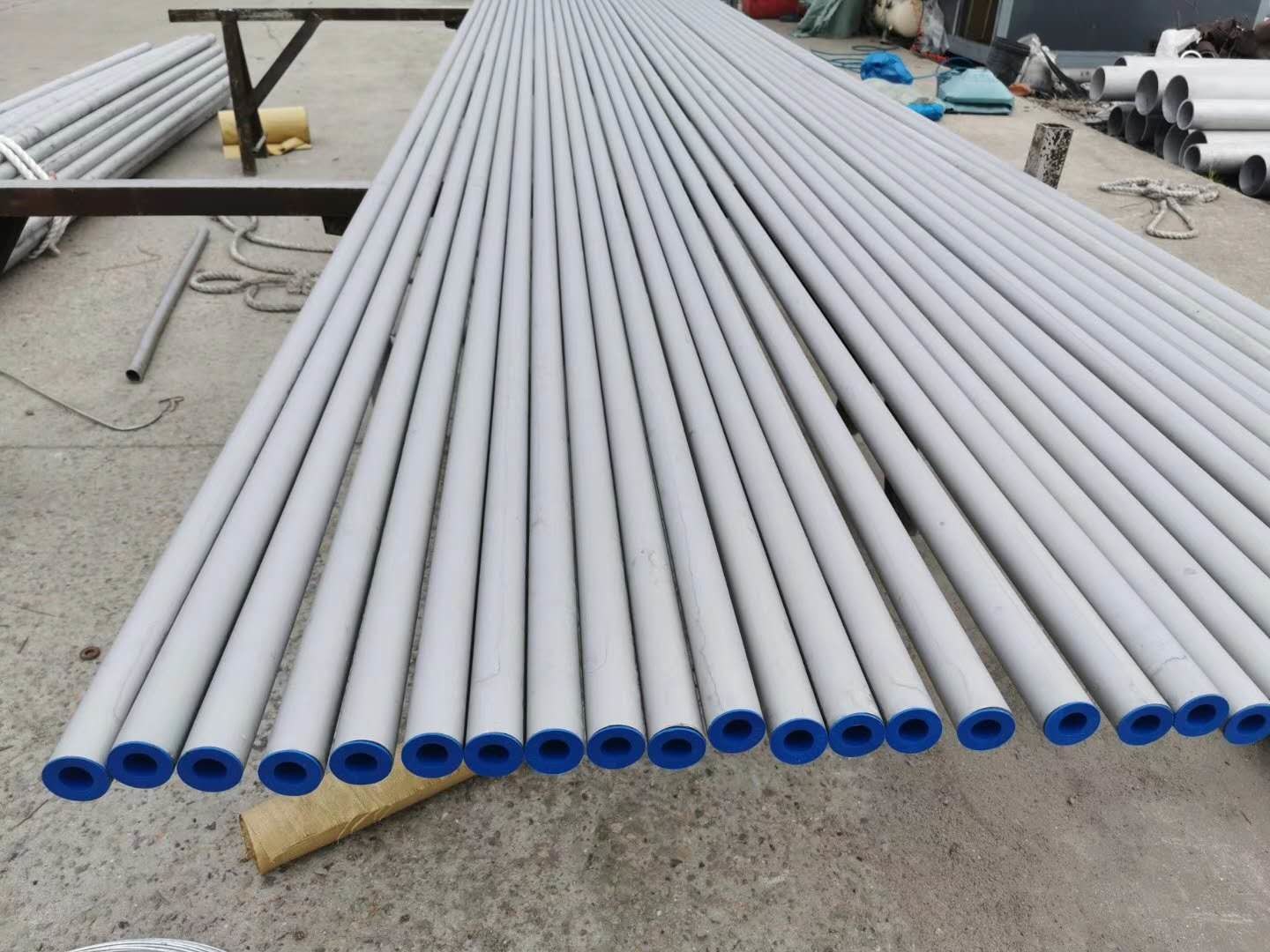

Tubing

Crestflo offers a wide range of high-quality industrial tubing solutions including Stainless Steel Tubes, Inconel 625 & 825 Tubes, SMO 254 Tubes, and Monel 400 Tubes. These tubes are widely used in critical applications across industries such as oil & gas, petrochemical, power generation, desalination, and marine. Manufactured with precision, our tubing products ensure excellent corrosion resistance, mechanical strength, and durability under high pressure and temperature conditions. We supply tubes in a variety of forms including seamless and welded, with a surface finish of annealed & pickled or bright annealed as per customer requirements.

Each material grade is selected to meet specific service conditions: Stainless Steel Tubes are available in grades 304, 304L, 316, 316L, 321, and 347 for general corrosion resistance; Inconel Tubes are offered in high-performance grades like Inconel 625 and 825 for extreme chemical and thermal resistance; SMO 254 Tubes (UNS S31254) are designed for superior resistance in chloride-bearing environments; while Monel Tubes are available in Monel 400 grades, ideal for marine and acidic media applications. All tubing is produced to ASTM specifications with full test certification and third-party inspection available on request.

SPECIFICATIONS

Size Range: OD: 1/8” to 2” (3.2 mm to 50.8 mm) Thickness: 0.5 mm to 5 mm

Length: Up to 6 meters (Custom cut lengths available)

Type: Seamless / Welded

Standards: ASTM A213 / A269 / B163 / B165 / B444 / B423

Form : Straight / U-bend / Coil

Surface Finish : Annealed & Pickled / Bright Annealed / Polished

End Finish : Plain End / Beveled / Threaded / Flared / Flanged

Tubing

Tubing

SIZES & DIMENSION

Size
OD, Inches
BW
Ga.
Wall
Dec-In.
ID Weight
Lbs/Ft.
1/8 22 0.028 0.069 0.0290
20 0.035 0.055 0.0336
3/16 22 0.028 0.131 0.0478
1/4 25 0.020 0.210 0.0491
22 0.028 0.194 0.0664
21 0.032 0.187 0.0745
20 0.035 0.180 0.0804
18 0.049 0.152 0.1052
16 0.065 0.120 0.1284
5/16 20 0.035 0.242 0.1039
18 0.049 0.214 0.1382
16 0.065 0.182 0.1722
3/8 22 0.028 0.319 0.1038
20 0.035 0.305 0.1271
18 0.049 0.277 0.1706
16 0.065 0.245 0.2152
7/16 18 0.049 0.340 0.2036
1/2 25 0.020 0.460 0.1025
20 0.035 0.430 0.1738
18 0.049 0.402 0.2360
16 0.065 0.370 0.3020
5/8 20 0.035 0.555 0.2205
18 0.049 0.527 0.3014
16 0.065 0.495 0.3888
3/4 20 0.035 0.680 0.2673
18 0.049 0.652 0.3668
16 0.065 0.620 0.4755
14 0.083 0.584 0.5913
7/8 18 0.049 0.777 0.4323
16 0.065 0.745 0.5623
11 0.120 0.635 0.9676
1 20 0.035 0.930 0.3607
18 0.049 0.902 0.4977
16 0.065 0.870 0.6491
14 0.083 0.834 0.8129
11 0.120 0.760 1.1278
1-1/4 11 0.120 1.010 1.4480

OUR KEY

FEATURES

01

High Corrosion Resistance

Withstands aggressive environments and chemicals.

02

Easy Installation

Quick assembly without the need for special tools.

03

High Pressure Tolerance

Suitable for systems operating up to 6000 psi.

04

Compatibility

Matches with a wide range of tubes and piping systems globally.

Types of Tubings

LogiHub

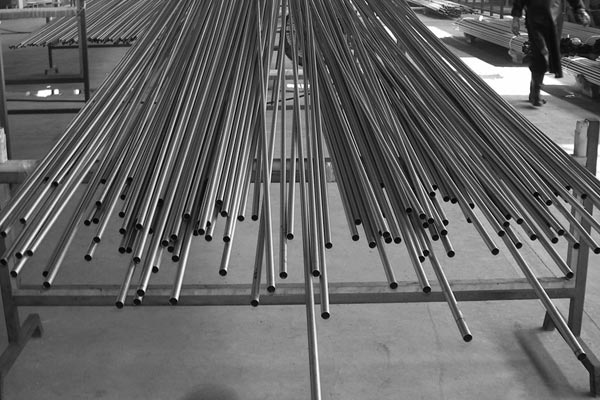

Stainless Steel Tubing
LogiHub

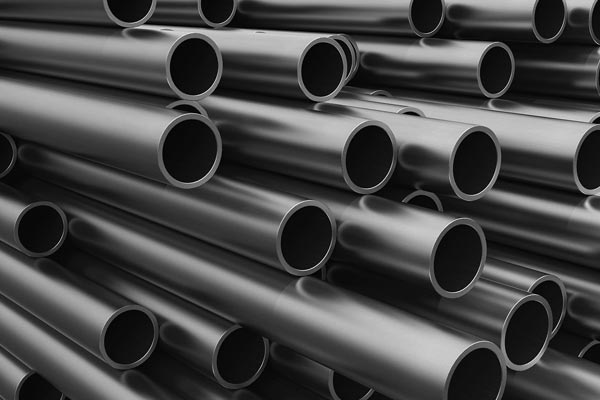

Inconel Tubing
LogiHub

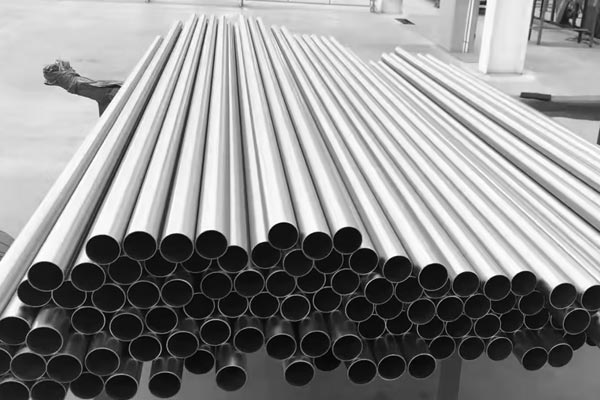

Monel Tubing
LogiHub

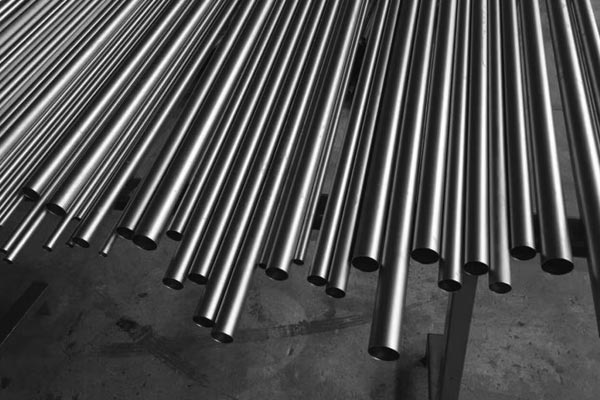

SMO 254 Tubing
